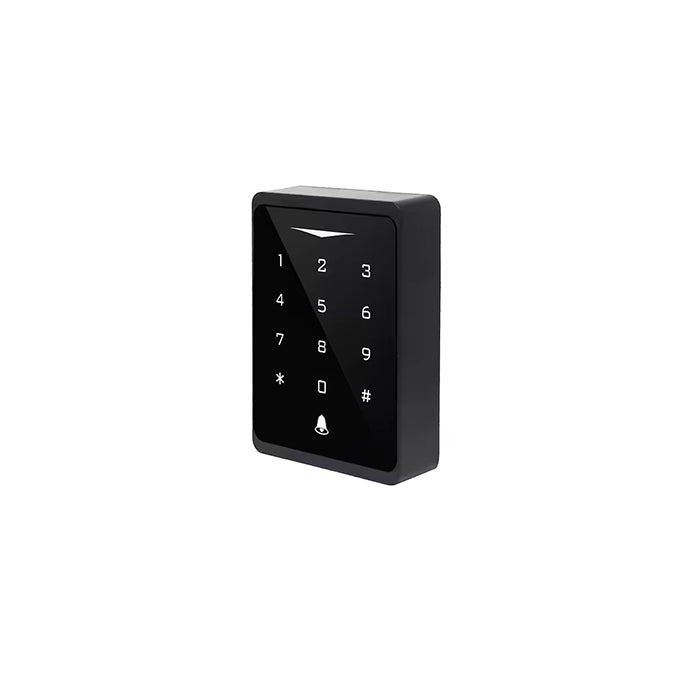

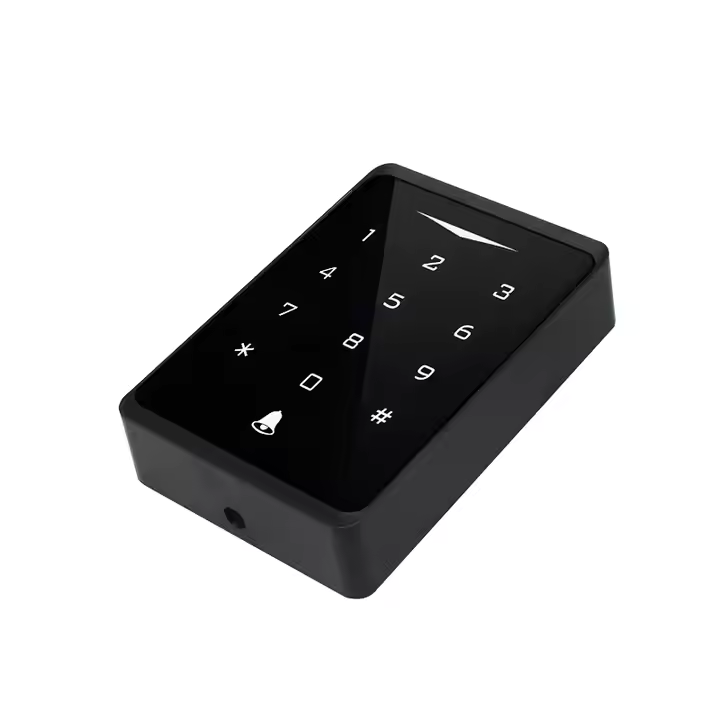

The device is a single-door multifunction standalone access controller or a Wiegand output reader. It uses Atmel MCU assuring stable performance. The operation is very user-friendly, and low-power circuit makes it long
service life.
The device supports 1,000 users (990 common users + 10 visitor users); all user data can be transferred from one to another. It supports multi access modes in card access, PIN access, or multi cards/PIN access. It has extra features, including block enrolment, Wiegand input & output interface, etc.
FEATURES
- WiF1 2.4G network
- Touch key
- Waterproof, conforms to IP66
- One relay, 1,000 users (990 common + 10 visitor)
- PIN length: 4~6 digits
- EM card, EM+ Mifare cards optional
- EM card; Wiegand 26~44 bits input & output
Mifare card Wiegand 26~44bits, 56bits, 58bits input & output
- Can be used as Wiegand reader with LED & buzzer output
- Card block enrollrent
- Tri-color LED status display
- Pulse rode, Toggle mode
- User data can be transferred
- A built-in light-dependent resistor (LDR) for ant tamper
- A Backit keypad can set autornatic OFF after 20 seconds
SPECIFICATIONS
User Capacity: 1000
Common User: 990
Visitor User: 10
Operating Voltage: 12-18V DC
Working Current: <150mA
Idle Current: <60mA
Praximity Card Reader: EM / EM + Mifare (Optional)
Radio Technology: 125KHz / 125KHZ + 13.56MHz
Read Range: 2-6 cm
PIN Length: 4-6digits
Wiring Connections: Rolay Output, Exit Button, Wiegand
Input, Wiegand Output
Reiay: One (NO, NC, Common)
Adjustable Relay Output Time: 0~99 Seconds (5 seconds default)
Lock Output Load: 2 Amp Maximum
Wiegand Interface: EM card: Wiegand 26~44 bits input &
output.
Mifare card: Wiegand 26~44bits
56bits, 58bits input & output.
(Factory default: Wiegand 26bits for EM card,
Wiegand 34bits for Mifare card)
PIN Output: 4 bits, 8 bits (ASCI), 10 digits Virtual Number
(Factory Default: 4 bits)
Environment: Meets IP66
Operating Temperature: -40°C ~60°C (-40°F ~ 140°F)
Operating Humidity: 0%RH-98%RH
Physical: ABS
Colour: Black
Dimensions: L116 x W72x D24 (mm)
Unit Weight: 160g
